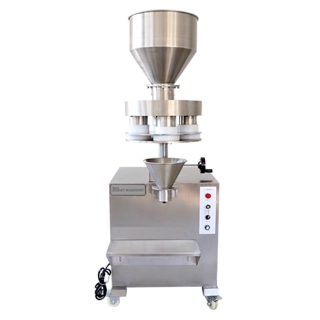

Volumetric Cup Filler For Grain Powder

Description

Automatic granule/powder filling machine fills the products by the adjustable volumetric cups.

Application

Fill granule/powdered materials in the fields of food, daily chemical and medicine etc.

Advanced design

Made of stainless steel: totally adaptto the require of GMP or other food sanitation certification
Work stable, with counter function.

Working method

Automatic by sensor / Pedal.

Volumetric Filling: The Process Illustrated

Measuring cups, sized to the amount of product to be measured and filled, are inserted between a set of plates on the machine.

image TODAY MACHINE Volumetric Cup Filler
As the plates rotate, each cup passes beneath the feed hopper and is filled.
image 1 TODAY MACHINE Volumetric Cup Filler
Each cup is filled and emptied in a smooth, rhythmic cycle.
3 TODAY MACHINE Volumetric Cup Filler
The plate continues to its rotation, and when the fill cup arrives at the fill spout, the product is dropped through to the container below.
ModelPower
(W)
Range
(ml≠g)
ErrorSpeed
(pcs/min)
Dimension
(LxWxH)mm
Weight
(kg)
CF-10020020-100ml1%50700×500×1660110
CF-200300100-200ml1%50700×500×1660120
CF-500400100-500ml1%40700×500×1660140
CF-1000500500-1000ml1%35700×500×1660150
CF-20005001000-2000ml0.5%30750x550x1880180
CF-30005502000-3000ml0.5%25880x770x1800200
CF-40007702500-40000.5%20900x1000x1900220
VIDEO OF VOLUMETRIC CUP DOSER
