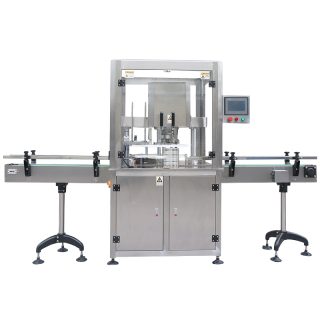

Automatic Can Sealing Machine
Application
This fully-automatic can sealing equipped with 4 rollers can achieve double seam via 2 operations to avoid leakage.
Ideal for sealing tuna, sardine & other cannery food in the tin, aluminum, Ferrum and other round metal cans.
Suitable for packaging in food, beverage, leisure food, pharmaceutical and chemical industries etc, such as nuts, preserved fruits, Chinese herbal, etc.
Description
High volume Fully-automatic single head seamer
4 rollers for consistent & leak-proof seam
Perfect for sealing tin, aluminum, PET& other paper cans with a maximum diameter of 130mm
Adopts PLC and man-machine interface are integrated and controlled by microcomputer technology, which realizes human-machine data exchange, and is easy to operate and intelligent.
Overload protection system advoide machine overload damage,provides a smarter using experience while extending the life of your equipment and saving on maintenance costs.
Whole sealing head and lifting tray are made of 304# stainless steel.At the same time of rust prevention, the mechanical rigidity is better, and the sealing effect is better and more stable.
The electrical components are all internationally renowned brands, which make the equipment run more stable, the service life is extended, the maintenance cost is saved, the replacement is more convenient and quick, and the customer can purchase and use it locally.
Seal without Leakage
Double Seam
All our automatic can seamers are equipped with 4 rollers, which can achieve an airtight double seam, a strong mechanical structure containing 5 layers of metal.
Strong Rollers
By improving the rigidity of the rollers, our can sealing machine can form a stronger hermetic seal, ensuring that every can of your product is leakage-free.
Perfectly-matched Toolings
Toolings of every can seamer are exclusively-made based on the size & type of your can. So the lid is perfectly sealed to the can body without any gap for leakage.
Technical parameter
| Model | CS |
| Sealing head qty | 1 piece |
| Seaming roller | 4pcs (2pcs first operation and 2pcs second operation) |
| Speed | 35-50pcs/min |
| Can height | 20-200mm |
| Can diameter | 35-130mm |
| operating temperature | 0~45℃ operating humidity:35~85% |
| Working power supply | three phrase AC220V-380V 50/60Hz |
| Total power | 2050W |
| Air pressure | 0.5-0.6MPA |
| Weight | 380kg |
| Size | 2950(L)*950(W)*1700(H)mm (including 2m conveyer belt) |
